Key Features
-
Multi sensor changeover system incorporating pan and tilt tripod, power source control and 6.4"
TFT rugged waterproof monitor
-
Colour, Monochrome and / or intensified
-
Night Vision options:- 2+, XD-4, XR5
-
Cost effective employing one lens
-
Lens Options:- 10-300mm, 20-600mm, 17-374mm, 23-506mm, 46-1012mm, 12.5-1500mm
Description

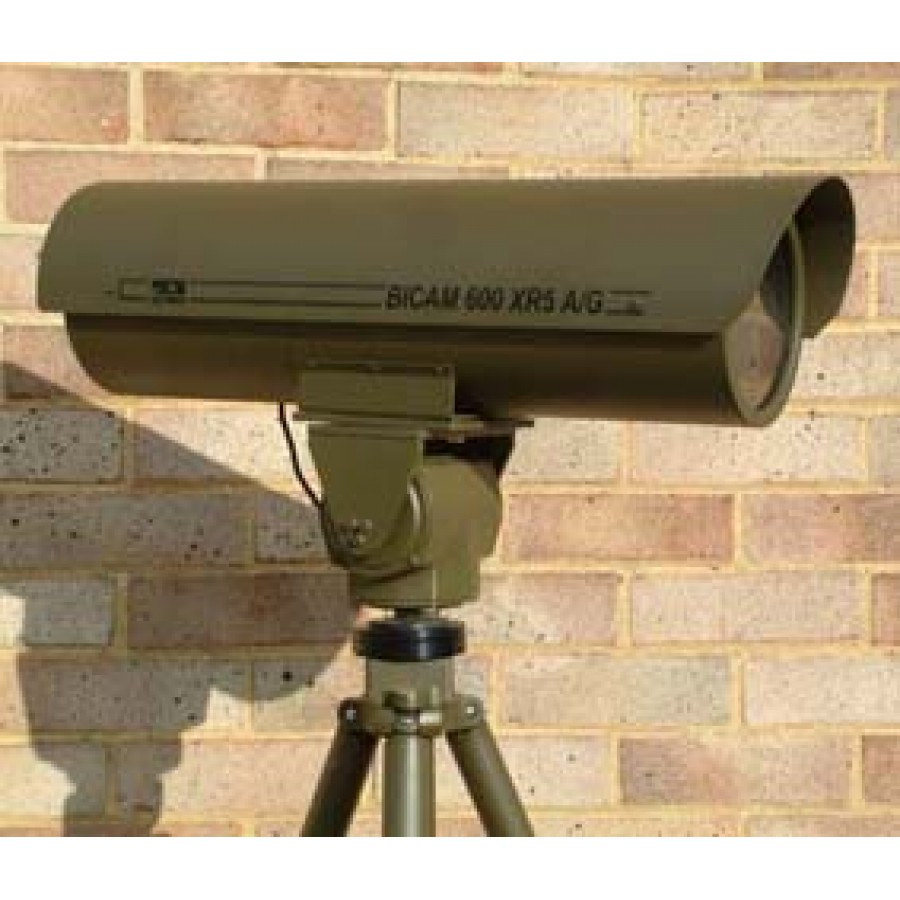

Bicam and Tricam changeover cameras are a series of 24/7
surveillance cameras employing a unique changeover technology with 2 or 3 sensors chosen to
optimise picture quality dependent on conditions.
Each system incorporates pan and tilt tripod, power source control
and 6.4"
TFT rugged waterproof monitor.
Any combination of high quality colour, high sensitivity
monochrome, or image intensified camera can be married to the lens chosen and housed in an
environmental housing ready for installation to a new or existing CCTV system.
Zoom Lens
All zoom lenses are motorised focus, continuous motorised zoom and
fitted with auto iris.
Environmental
Waterpoof to IP67
Sealed aluminium housing
Electrical
Connector 14 Way
Input voltage 12V DC
|
Specification
|
Optical |
|
|
Colour Camera: |
480 TVL Camera |
|
Focal Length: |
10-300mm (F1.5), 20-600mm (F3.0), 17-374mm (F2.3), 23-506mm (F3.1), 46-1012mm (F6.1),
12.5-1500mm (F3.8) |
|
Monochrome Camera incorporating |
|
|
Monochrome Camera |
570 TVL |
|
Image Intensifier: |
XR5 - XD-4 - GEN 2+ |
|
Sensitivity µA/m (typical) |
800 - 700 - 450 |
|
Resolution lp/mm (typical) |
72 - 64 - 32 |
|
Signal to Noise ratio (typical) |
28 - 23 - 15 |
|
Figure of Merit (FOM) |
2016 - 1472 - 480 |
|
Electrical: |
Connector 14 Way |
|
Power source: |
Built-in 12v 16Ah sealed re3chargeble battery pack |
|
Physical: |
|
|
Dimensions |
631mm (L) x 173mm (W) x 165mm (H) (Camera only) |
|
Weight: Camera head, monitor, control box, tripod, |
40kgs (approx) |
|
Monitor: |
Rugged waterproof 6.4" LCD monitor |
|
Changeover mechanism: |
Camera is switchable between colour and |
|
Environmentally seald camera sensor head with suns |
|
|
External milspec connection: |
Allows connection of any additional 12V battery pack or |
|
Transport and storage: |
Milspec, compartmented, airtransportable wheeled box |
|
Tripod mounted: |
Motorised pan/tilt head |
|
